Alpha 30NM 3 WIRE MOTOR w/Obstacle Detection
Our products are built to last, ensuring top-tier quality every time.
Shop with confidence using our 100% secure checkout process.
Zip Screen Shade Motor. 30NM 21RPM. Remote Control With Obstacle Detection. Primarily used in exterior roll down screens and Zip Screens
$257.50
About the product
Obstacle detection motor with star head.
This motor has a star head to suit many common mountings and is ideal for zip systems.
It incorporates obstacle detection in both directions so that it can stop on stoppers at the top limit if necessary.
If, on the way down, the motor detects that the bottom bar has stopped moving in the channel due to getting stuck or hitting an object, it will rebound to a higher point and attempt to go down again.
After attempting this 3 times unsuccessfully, it will return to the rebound position and stop.
- 45mm diameter
- Power Specifications – 120V / 60Hz
- Electronic Limits
- Built in Remote Receiver
- Wireless limit set up
- External antenna
- Suitable for: External Zip Systems
- Warranty: 7 year replacement
additional information
| Type | Exterior, Interior |
|---|---|
| Overide | No |
| Voltage | 120v |
| Battery Type | None |
| Motor Type | 5 |
| NM | 30 |
| Remote RTS | Yes |
| Switch Operated | No |
RELATED PRODUCTS:
-
Sale!
SIMU T5 550 50NM RTS Shutter Motor w/ Override – Kit
Original price was: $640.95.$599.95Current price is: $599.95. -
Sale!

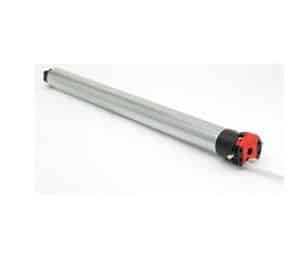

SIMU 50NM RTS Shutter Motor
